HOME > Product Information > PALLETIZING SLIP-STOP

Korean and US Patent acquired

KMG INC. has manufactured and provided the liquid Slip-Stop and assembled and provided the "GPU-100," which is automatic sprayer with error rate of "0," so we present advanced and environment-friendly techniques for decreasing distribution cost by using PALLETIZING SLIP-STOP.

There are three methods for preventing slipping, which are SLIP-STOP SYSTEM, PP-banding, and Stretch Wrapping.

PALLETIZING SLIP-STOP products - SLIP-STOP SYSTEM

PP-Banding

Stretch Wrapping

Features

- Simple constitution - MT automatic sprayer + "SLIP-STOP" liquid
- Easy spraying solution of non-toxic, water-soluble, neutral, and liquid state on normal temperature.
- Conveniently installable and safely usable MT automatic sprayer in any places and for any body
- Unlike PP banding machine and wrapping machine, it gives slip-stop effects immediately after loading.
- Secure SLIP-STOP effects give prompt and safe transport for freight
- It is easy to separate products, gives no damage no products surface, and maintains SLIP-STOP effects for remained parts in separation
- Environment-friendly and clean production gives competitive power and good image to enterprise.
- Already proved high-tech products through several years use by a number of companies

Comparative Table for SLIP-STOP, Stretch wrapping, and PP-Banding

	SLIP-STOP SYSTEM (Auto Sprayer + SLIP-STOP SYSTEM)	PP BANDING MACHINE	STRETCH WRAPPING MACHINE
INSTALLATION CHARGE	About 1/10~1/50 of wrapping machine and about 1/10~1/15 of pp banding machine or a free rent	10~15 times of the "SLIP-STOP" SYSTEM	10~50 times of the "SLIP-STOP" SYSTEM
SPACE REQUIRED	- doesn't need separate place - can be applied easily to the existing line before palletizing	Needs separate place about 5sq. meter after palletizing	Needs separate place about 5 sq. meter after palletizing
POWER CONSUMPTION	About 20 w	About 2,000 w	About 3,000 w
LABOR COST	About 1/4 of wrapping machine and pp banding machine	About 4 times for "SLIP-STOP" SYSTEM	About 4 times of the "SLIP-STOP" SYSTEM
CONSUMABLE COST	About 1/2~1/7 of wrapping machine and about 1~1/2 pp banding machine	About 1~2 times for "SLIP-STOP" SYSTEM	About 2~7 times of the "SLIP-STOP" SYSTEM
ENVIRONMENT 1	Can improve company's image because it is environmentally friendly	Drops company's image because it brings about environmental pollution	Drops company's image because it brings about environmental pollution
ENVIRONMENT 2	No waste	Hard to handle the waste	Has waste that is complicated to handle
ENVIRONMENT 3	Nontoxic, water - based and biodegradable	Difficult to resolve	Difficult to resolve
RECYCLE	No problem	Difficult to recycle	Difficult to recycle
FUNCTION 1	SLIP-STOP effect appears right after palletizing and it holds up and down inside the pallet without danger of slipping after stacking	Easy to slip / fall while moving to the place of banding machine after palletizing	It has danger of slipping while moving to the wrapping machine after palletizing
FUNCTION 2	SLIP-STOP effect maintains even when pallet load is separated as parts	-damage on the surface of the product and can be collapsed through the loosened band -can not hole between upper and lower layers -when it applied to one layer, it holds only one layer	If the wrap is removed, it can be collapsed at once due to slipping
FUNCTION 3	Can be separated easily by hand without any damage to the packaging surface of the product	Needs knife to remove pp bands, it is dangerous and can damage to the product	Needs knife to remove wraps, it is dangerous and can damage to the product
SAFETY	Free trouble, safe, quiet, easy to maintain	Has often troubles, not safe, difficult to maintain	Has often troubles, not safe, noisy, difficult to maintain
MAINTENANCE	Doesn't need to stop the product line when maintaining	Need to stop the product line when maintaining	Need to stop the product line when maintaining

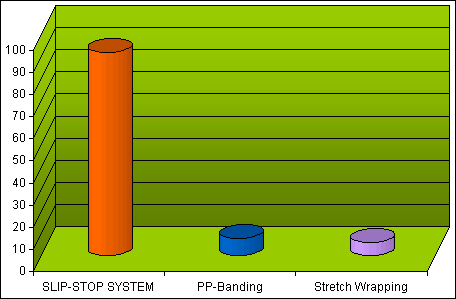

Comparative Graph for Slip-Stop, Stretch wrapping, and PP banding

Many companies have replaced existing PP-banding and stretch wrapping with PALLETIZING SLIP-STOP and this change may be faster and faster.

Decrease you distribution cost by applying SLIP-STOP SYSTEM to your company.
Your hesitation gives only waste.
